MBC Through-Hole Force Sensor

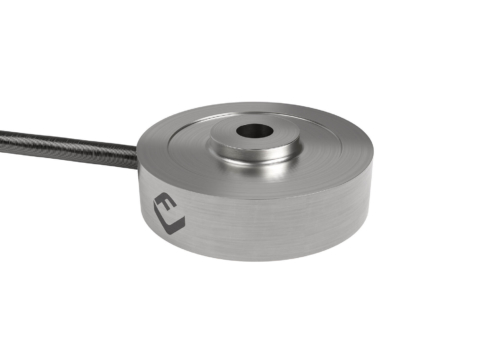

MBC Through-Hole Force Sensor (100lb - 50klb)

sometimes defined as a canister load cell,high capacity compression load cell by Flintec is well known for the quality and reliability.
Compression MBC Through-Hole Force Sensor performs highly accurate measurements of compression forces with ease by utilising the simple mounting arrangement and the central load introduction facility.

Key Features:

• High accuracy ± 0.25%
• Low profile and small diameter
• Range of internal thru-hole diameters
• Compression force measurement
• Low weight
• Stainless steel construction
• Temperature compensated -10°C – + 40°C
• Environmental protection to IP65
• RoHS – Lead free approval

Purpose: General test and measurement as well as machine monitoring and control. Ideal for packaging machinery, assembly machinery or end-of-line test equipment.

Attachments:

Datasheet

4915 kB
