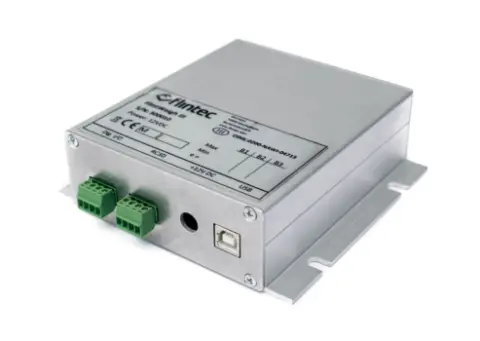

Flintweigh III Weighing System

belongs to the Flintec’s group of a simple load cell indicator used in floor scales and fully featured devices for operating truck scales.
This weight indicator brings the most out of your electronic weight sensor solution.

Key Features:

• EU Type approval 10,000 intervals (single range), or 2×5,000 / 3×3,000 intervals (multi-range / multi interval)
• Approved PC-Weight Display on PC
• Printers and remote display can be connected directly to a PC
• Connection for analogue and digital RC3D load cells
• USB 2.0 and Ethernet interfaces for connection to PC
• RS485 interface for connection to RC3D
• 1x opto-isolated input, 2x opto-isolated outputs
• Calibration performed by FlintWeigh III software
• Power supply 12V DC

Purpose: Designed for a range of universal weighing applications that use either analogue or digital load cells.It can transfer approved weighing data to a Windows-based program without the need for complex and expensive program interfaces.
