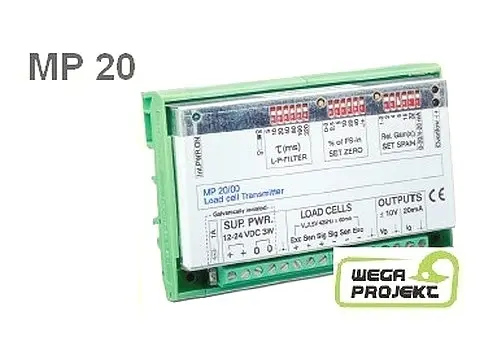

MP 20 Analogue Load Cell Transmitter

Basic technica data:

• Linearity better than 0.01% of full scale
• Analogue outputs 0/4 to 20 mA and 0 to10 VDC simultaneously usable
• Four load cells of 350 O can be powered
• Active low pass filter from 0.25 Hz to 32 Hz
• Supply voltage 12-24 VDC or 110 VAC/230 VAC via MP 20/20
• Zero offset up to +/- 80 % of full scale
• Input signal range up to 3.3 mV/V
• Easy calibration
• Easy mounting by using Phoenix DIN rail module

Typical NOs

MP 20/00 Analogue transmitter 9408 800 20001

MP 20/30 Option for MP 20: Junction unit for 4 load cells 9408 800 20301
