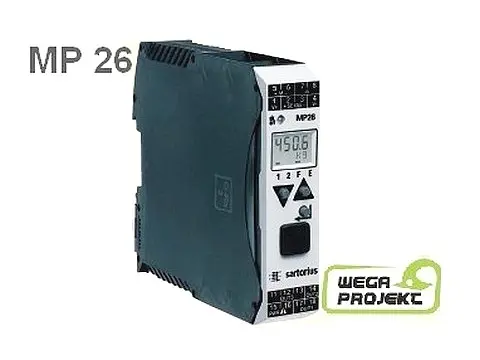

MP 26 Digital Process Transmitter
The MP 26 series of Digital Process Transmitters is designed to combine reliable weight information from process vessels with extremely easy operation and setup. A wide range of strain gauge load cells can be connected and output is provided in the common 4… 20 mA signal format. Direct access to all configuration and operation levels via the front keys. The MP 26/10 engineering tool provides the same level of access via a comfortable PC-Program.
TECHNICAL SPECIFICATIONS
Baisc technica data:
- Simple Weighing Transmitter for one Scale
- Full Digital Signal Processing with up to 20,000 divisions Resolution
- Analogue output 0/4… 20 mA, 0/2..10 V, fully galvanically isolated from supply
- Direct calibration and configuration via front keys or via PC-Engineering Tool MP 26/10
- Supply voltage 230 V (24 V Option)
- Protection class IP20
- DIN-Rail mounting
Typical NOs
MP 26/00 Meteor Digital Process Transmitter 85-264 V AC 9408 800 26001
MP 26/01 Meteor Digital Process Transmitter 18-35 V AC/DC 9408 800 26011
MP 26/10 Meteor Engineering Tool for MP 26 9408 800 26101
