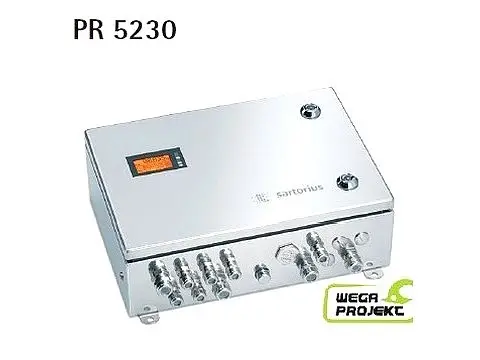

PR 5230 Transmitter in field housing

The standard RJ45 connector provides ModBus TCP and also Ethernet TCP|IP for an easy integration into existing PLC and PC networks. Information can be transferred into supervisory systems with the OPCServer technology.

• Ethernet TCP|IP for PC connection to OPC Server or configuration by Browser
• Modbus TCP for PC and PLC connections
• Webservice via SOAP|UPnP
• serial Interface RS485/422 and RS232
• 3 digital in- and 3 outputs (Relays)
• W&M approval for 10.000 e, class III (In preparation)
• Calibration without weights (Smart Calibration)
• Strain gauge and Sartorius digital scales can be connected
• Display for Weight and Status Information
• ATEX Ex approval for use in Zone 2/22
• Intrinsically safe load cell connection for load cells in Zone 1/21

Typical Option cards for 9405 152 30000 :

• analogue output 0/4 –20 mA,
• Profibus-DP, Interbus-S, DeviceNet, CC-Link, Profinet and Ethernet|IP,
• Load Cells connection board for up to 4 Load Cells
• an other more to find in pdf

Typical NO

PR 5230 Transmitter basis unit / please add the needed options 9405 152 30000

Accessories

PR 5230/06 Interface Card Analog Output 0/4-20 mA 9405 352 30061
PR 5230/22 Load Cell connection Board up to 4 Load Cells 9405 352 30221
PR 5230/30 Ethernet female connector RJ45, IP65 9405 352 30301
PR 5230/31 Ethernet cable with cable glance, 7m, RJ45 plug, Industrial Material 9405 352 30311
PR 1721/41 Interface Card Profibus DP 9405 317 21411
PR 1721/44 Interface Card DeviceNet 9405 317 21441
PR 1721/45 Interface Card CC-Link 9405 317 21451
PR 1721/46 Interface Card Profinet 9405 317 21461
PR 1721/47 Interface Card Ethernet/IP 9405 317 21471
