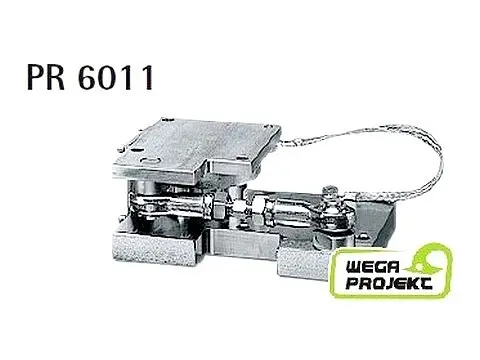

PR 6011 Mounting kits for load cell PR 6211
The standard version is available in zinc plated and yellow chromated steel. For the chemical and food industries with their high requirements to durabilty and hygiene. The MiniFlexlock is also available in stainless steel. The built-in constrainer absorbs horizontal forces, while leaving the object free to expand in case of temperature changes. The version with constrainer is equipped with dummies. The mounting kits are 100% maintenace free.
TECHNICAL SPECIFICATIONS
Basic technical data:
- Simple and fast installation
- Proven mounting kits for vessels
- Best weighing performance since mounting kits and load cells form a complete weighing unit
- Prepared for the installation of a lift-off-protection
- Full stainless steel version available
- Completely maintenance free, inclusive constrainer
- Compact design
Mounting kit without contrainer
Type Description Height Order Number
PR 6011/00S Mounting kit S/S, 30 kg … 300 kg 32.3 9405 960 11002
Mounting kit with integrated constrainer
Type Description Height Order Number
PR 6011/20S Mini Flexlock, 450 N mounting kit for PR 6211, 30 kg … 300 kg, stainless steel 32.3 9405 960 11202
Mounting kit with additional functions
Type Description Height Order Number
PR 6012/00S Mounting kit for PR 6211/ 30kg…300kg 42.2 9405 360 12002
Mounting kit with additional functions and integrated constrainer
Type Description Height Order Number
PR 6012/20S MaxiFLEXLOCK for PR 6211/ 30kg…300kg 42.2 9405 360 12202
Special mounting kits
Type Description Height Order Number
PR 6011/03N Rubber mounting kit, 30 kg … 300 kg – Only with PR 6011 mounting kits 62.0 9405 360 11031
PR 6011/09S Mounting kit adapter for PR 6211/30 kg…300 kg in PR 6012 MK 9405 360 11092
