Load Cells Mounting Kits

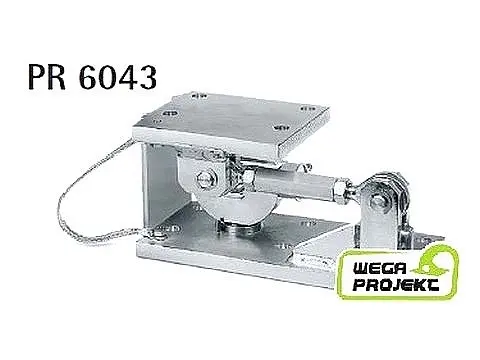

PR 6041, PR 6043 Mounting kits for load cell PR 6241
The standard version is available in zinc plated and yellow chromated steel. For the chemical and food industries with their high requirements to durabilty and hygiene. The MiniFlexlock is also available in stainless steel. The built-in constrainer absorbs horizontal forces, while leaving the object free to expand in case of temperature changes. The version with constrainer is equipped with dummies. The mounting kits are 100% maintenace free.
TECHNICAL SPECIFICATIONS
Basic technical data:
- Simple and fast installation because dummies are included in the supply
- Proven mounting kits for vessels and platforms
- Best weighing performance since mounting kits and load cells form a complete weighing unit
- Prepared for the installation of a lift-off-protection
- Full stainless steel version available
- Completely maintenance free, inclusive constrainer
- Compact design
Mounting Kits without Constrainer
PR 6041/04N 55.0 9405 360 41041
PR 6041/30N 92.0 9405 360 41301
PR 6041/30S 92.0 9405 360 41302
PR 6041/40N 130.0 9405 360 41401
PR 6041/40S 130.0 9405 360 41402
PR 6041/51S 44.0 9405 360 41512
MiniFLEXLOCKs with Integrated Constrainer
PR 6043/30N 92.0 9405 360 43301
PR 6043/30S 92.0 9405 360 43302
PR 6043/40N 130.0 9405 360 43401
PR 6043/40S 130.0 9405 360 43402
Mounting kits with additional functions
PR 6044/00S 92.00 9405 360 44002
PR 6044/01S 92.00 9405 360 44012
PR 6044/10S 92.00 9405 360 44102
PR 6044/11S 130.00 9405 360 44112
Load Disc
PR 6043/31S 9405 360 43312
