PR 6130/08, PR 6130/04N, 64S, 68S, PR 6135(A), 6136(A) Cable junction boxes, Extension cable

This junction boxes serves for connecting 1 to 8 load cell cables and one extension cable PR 6135. Two cable glands for 4 cables each are for the load cells, one M20 cable gland is for the extension cable. The cable wires are connected separately, e.g. all wires for “supply +” end at one terminal block; the screens are separately connected, too.

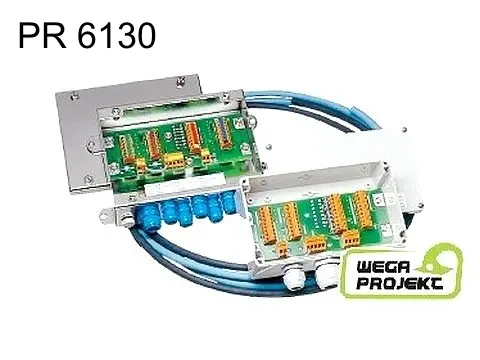

PR 6130/04N, PR 6130/64S, PR 6130/68S The cable junction boxes PR 6130/04N and PR 6130/6.. are the best solution for connecting load cell and extension cable. They cover the whole spectrum of applications: application in hazardous areas, W&M and non-W&M weighing systems. Moreover, the stainless steel versions may be used in highly corrosive zones as well as in the extremely clean areas of the pharmaceutical industry. The cable junction boxes PR 6130/64S and PR 6130/68S are made of stainless steel whereas the cable junction box PR 6130/04N is made of painted aluminium (grey). The cable junction boxes PR 6130/04N and 6130/64S connect up to 4 load cells and the cable junction box PR 6130/68S up to 8 load cells with one extension cable in six wire technique.

PR 6135, PR 6136, PR 6135(A), PR 6136(A) The extension cables PR 6135/PR 6136, PR 6136(A) and PR 6135(A) are developed for the special requirements of weighing in industrial area. The cables bridge the distance between cable junction box and the weighing electronics. Its extremely safe signal transmission is due to the double screening: first, every measuring wire is screened separately and second, the cable is additionally screened as a whole. You use the blue extension cable PR 6136/ PR 6136(A) for hazardous area installations, the grey extension cable PR 6135/PR 6135(A) is sufficient for all other applications. The cable is silicone free, flame resistant and halogen free and highly resistant to external influences.

• Complete connection between load cells and weighing controller
• Cable junction boxes: heavy duty housing made from plastics, aluminium or stainless steel protection class IP 65 – IP 69K
• Installation cable:
  • Signal transmission over long distances without problems
  • Very good chemical resistance
  • Insensitive to disturbances because of double screening

Typical NOs

MP 90/04 9408 800 90044
PR 6130/08 9405 361 30084
PR 6130/04N 9405 361 30044
PR 6130/34Sa 9405 361 30344
PR 6130/35S 9405 361 30354
PR 6130/38S 9405 361 30384

Typical NOs for Ex zone

PR 6130/64Sa 9405 361 30644
PR 6130/65S 9405 361 30654
PR 6130/68S 9405 361 30684

Installation Cable

PR 6135/01 9405 361 35011
PR 6135/11 9405 361 35112
PR 6135/21 9405 361 35212
PR 6135/31 9405 361 35312
PR 6135/51 9405 361 35512
PR 6135/12 9405 361 35122
PR 6135/32 9405 361 35322
PR 6135/01A 9405 361 35019
PR 6135/52A 9405 361 35529
PR 6136/01 9405 361 36012
PR 6136/51 9405 361 36511
PR 6136/12 9405 361 36121
PR 6136/32 9405 361 36321
PR 6136/01A 9405 361 36019
MP 80/80 9408 800 80801
