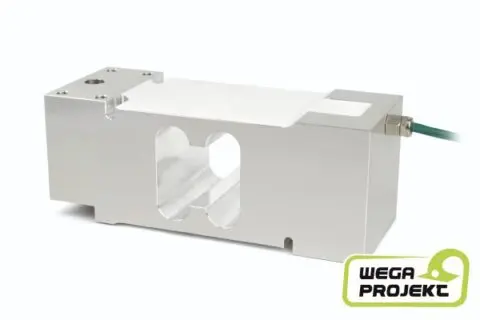

PR47 Load Cell
With the PR 40, PR 43 and PR 47 load cells made of aluminium, you cover load ranges from 5 kg to 750 kg and a platform size of up to 800 mm × 800 mm.
TECHNICAL SPECIFICATIONS
- Nominal capacity from 100 kg to 500 kg
- For platform size up to 800mm x 800mm
- Aluminium alloy construction
- IP66 + IP67
- Load Cell for single point platforms
Typical NOs for class C3
PR 47/100 kg C3MR High Capacity Single Point Load Cell 100 kg 2mV/V 3m 9409 247 07110
PR 47/150 kg C3MR High Capacity Single Point Load Cell 150 kg 2mV/V 3m 9409 247 07115
PR 47/200 kg C3MR High Capacity Single Point Load Cell 200 kg 2mV/V 3m 9409 247 07120
PR 47/250 kg C3MR High Capacity Single Point Load Cell 250 kg 2mV/V 3m 9409 247 07125
PR 47/300 kg C3MR High Capacity Single Point Load Cell 300 kg 2mV/V 3m 9409 247 07130
PR 47/500 kg C3MR High Capacity Single Point Load Cell 500 kg 2mV/V 3m 9409 247 07150
PR 47/750 kg C3MR High Capacity Single Point Load Cell 750 kg 2mV/V 3m 9409 247 07175
PR 47/xx kg C6 Single Point Load Cell – C6 (All capacities) 2mV/V 3m 9409 247 06xxx
PR 47/xx kg C3MRE Single Point Load Cell – C3MRE (All capacities) 2mV/V 3m 9409 647 07xxx
PR 47/xx kg C6E Single Point Load Cell – C6E (All capacities) 2mV/V 3m 9409 647 06xxx
PR 47/xx kg III 5000 S Single Point Load Cell – NTEP III 5000 S (All capacities) 2mV/V 3m 9409 247 0Cxxx
