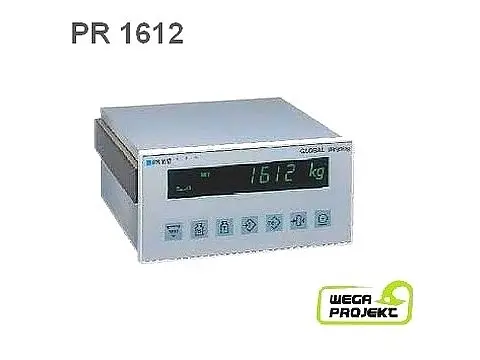

PR 1612/02 Compact Weighing Indicator
The PR 1612/02 weight indicator is particularly suited for Weights & Measures approved applications such as cranes, platforms, silos and weighbridges.
TECHNICAL SPECIFICATIONS
Operating via:
- front panel
- a remote display
- communication from a supervisory system
(Dust, JBUS/MODBUS, Teleperm, PROFIBUS-DP)
The PR 1612/02 weight indicator is available in a robust aluminium housing for front panel mounting. Utmost interference suppression and longterm stability guarantees optimum use in harshest environments
- High accuracy W&M indicator EC conformity certificate 3000d acc. to EN 45501 (corresp. to OIML R 76)
- 2 opto-isolated limit outputs
- Optional:
- Serial interface (current loop, RS 232 or RS 422/485)
- Analog- / BCD output
- Communication protocols
- PROFIBUS-DP
- Luminous vacuum fluorescent display
- IP 65 front panel protection class
- compact design (Panel mounting)
