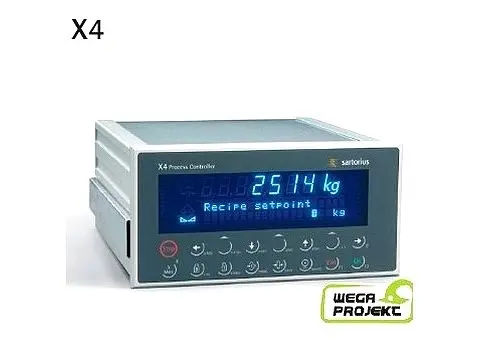

PR5510 PRO-X4 Process Controller

A wide range of interface options make it feasible for integration into all up-to-date automation concepts. The housing is designed for easy installation into switch cabinets, operating panels or direct at the machinery as a front-end unit. The bright weight display, with 7 digits plus units and status symbols, guarantees a good readability even under harsh conditions. Additionally there are two text lines each with 20 characters. Under the text lines function keys are arranged. The meaning depends on the application and guides the operator through the menu. The keys have a double assignment. The second level enables the operator to enter also alphanumeric characters. The X4 Process Controller offers the connection of an external PC-keyboard to upgrade the operation comfort in case of data entry. The X4 Process Controller has beside the normal indicator and weighing functions several interfaces and an internal alibi-memory as an option

• Programmable Process Controller (acc.to IEC 61131)
• EC Type Approval as indicator for non-automatic scales class III, 6000 e
• Optional
• Fieldbus-Interfaces: Ethernet, Profibus, DeviceNet, Interbus, CC-Link, Profinet, Ethernet | IP
• Analogue in- | outputs
• Digital in- | outputs
• Internal | external Alibi-memory
• Easy integration into automation concepts

Typical versions of the indicator:

• PR5510/00 PRO-X4 Process Controller 9405 155 10001
• PR5510/01 PRO-X4 Process Controller 24 V 9405 155 10011
• PR5510/20 BATCH-X4 Process Controller 9405 155 10201
• PR5510/30 IBC-X4 Process Controller 9405 155 10301
• PR5510/40 FLOW-X4 Process Controller 9405 155 10401
• PR5510/50 FILL-X4 Process Controller 9405 155 10501
• PR5510/90 PHASE-X4 Process Controller 9405 155 10901
