Extrusion / extruder control system – VarioEC
Vario EC - ready control system for extruder / plug & play extruder.
PRODUCT DETAILS
Designed for modernization of old extruder / extruder lines or as OEM control for new machines.
Replacing old regulators is only to overvoltage wires and controller configuration. Various types of inputs / outputs are available.
TECHNICAL SPECIFICATIONS
Basic technical data of VarioEC:
- up to 50 zones
- up to 5 drives
- visualized control of two drives – setting master / slave synchronization (eg coextruder or main drive + feeder); other drives can be controlled via standard PID channels
- basic process parameters always on the upper mask min. T and P wsadu, speed / load / drives, heating current measurement
- weekly timer
- recipe
- password 3 levels

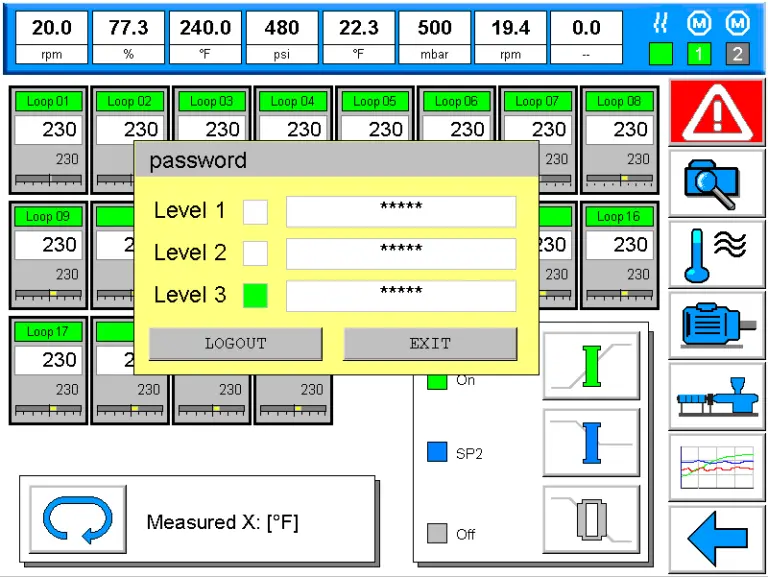

- 5.7 ” or 12 ” color display High Screen
- online trends for each PID zone
- recorder
- I / O scaling
- dynamic parameters for each zone
- measurement of heating current
- alarms / alarm groups
- Flash card
- SelfTuning single / group
- Ethernet
- modernization of extruders
