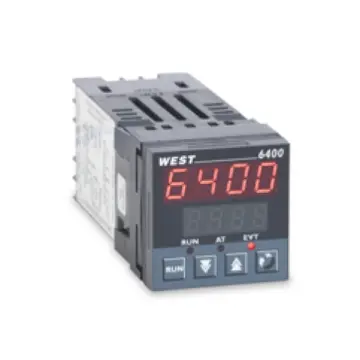

The N6400 is a powerful, one loop controller for complex processes. It offers profiling ability for 4 programs, each of 16 segments, which makes it a leader in its class.
The N6400 is an easy-to-use controller whose advantage is a clear display that provides maximum information at a glance. Dedicated configuration port enables direct connection with the PC and provides for the expansion, transfer and storage of recipes by dedicated software.
Advantages and functions:
Fast and accurate regulation thanks to fuzzy logic raPID
Four programs with 16 segments
Auto hold function
Remote job stop
The function of returning to work after a power failure
Delayed start
Modbus communication
TECHNICAL SPECIFICATIONS
Technical data:
Dimension: 48mm x 48mm x 110mm, 1/16 DIN
Main input: Universal (TC, RTD, DC liniowy mA/mV)
Other input: Digital
Output type: Relay, SSd, DC linear V or mA, Triak
Maximum number of outputs: 3
Regulation type: PID, ON / OFF, Manual, Alarm, Profiling
Power supply: 100–240V AC 50–60Hz | 20-50V AC 50/60Hz | 22-65V DC
