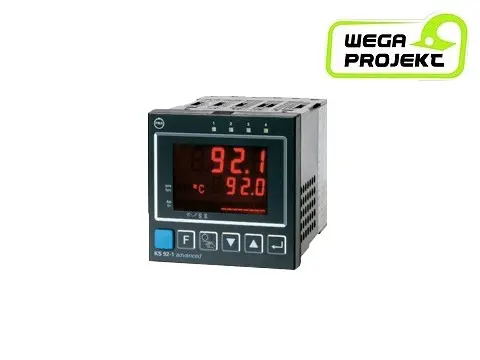

Controller PID KS 90-1/KS 92-1 PROGRAMMER

Together with the digital indicator Digital D 280-1 from the BluePort series, the Ks 90-1 regulator has been modified. As a result, it is possible to use it for oxygen content control systems using heated and unheated O2 measuring sensors. The measuring range of the regulator ranges from 0.0001ppm to 100% O2, with automatic selection and display of the measuring unit on a four-digit display.

Using the high impedance sensors connected to the INP1 input (Ri> 200 Mohm) and the temperature sensor at the INP3 input, the oxygen concentration value is calculated based on the Nernst equation. The calculated value is displayed and can be used for use in the control loop if required. When using heated sensors, the reference temperature is entered as a constant value.

You can choose a temperature measuring unit (C or F). It is also possible to use a measuring filter with an adjustable time constant up to 999.9 s to ensure stabilization of the oxygen concentration readings.

Basic technical data KS90-1/KS92-1 PROGRAMMER:

• 16 programs with 16 segments
• all modes of regulation, one-way controller, three-position, three-step stepper, etc.
• ratio controller, differential controller, step controller with physical feedback
• 2 universal inputs
• third auxiliary input
• BlueControl interface for configuration with PC using BlueControl software
• tracking of events; to 4
• Self-tuning without oscillation to the preset value
• 2 analogue and logic outputs
• 4 relay outputs
• RS 422/485 MODBUS RTU
• PROFIBUS DP
• transmitter power supply
• 60 st.C
• IP 65

Examples of configuration numbers:

• KS90-110-0000E-000
• KS90-112-0000E-000
• KS90-113-0000E-000
• KS90-112-1000E-000
• KS90-112-00000-000
• KS90-110-00000-000

Application:

• furnaces
• burners
• valve / throttle control with feedback
• kettles
• driers
• thermal treatment
• plastic processing
