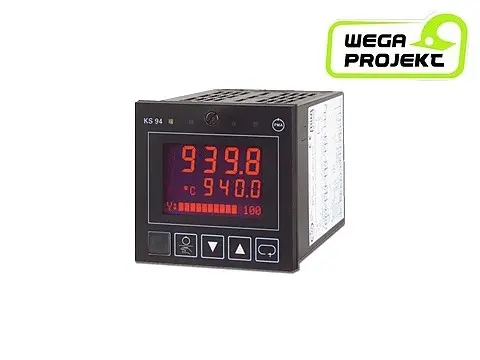

The KS 94 and KS92 controllers have the option of correcting the measured value, own internal power supply for the measurement loop and universal output for continuous or on / off operating modes. It is also possible to measure linearity and calculate the second degree element of each input and output signal. The configuration of the controllers can be done from the computer using the Engineering Tool software. The above features allow you to create precise applications that do not require any additional devices.
TECHNICAL SPECIFICATIONS
Application:
tunnel ovens
ceramics
plastic processing
petrochemicals (regulation of the pressure level)
furnace temperature control with gas combustion control (relationship ratio)
car industry
paint chambers (dryers)
production of food products
Basic technical data KS94:
four outputs, including one universal output (versions with continuous control signal 0/4 – 20mA)
clear LCD display with the indication of the process value, set value and bargraph control values
The KS 94 has a setpoint programmer with 3 20-segment programs and 4 switching outputs and the ability to define 12 16-character messages
KS 92, on the other hand, has a setpoint programmer with a 20-segment program and four control outputs
sensor damage control
reverse sensor connection check
time functions
measurement of heating current
Control modes KS 94 and KS 92:
signaling device, controller: 2 point and 3 point points, 3-point step controller and continuous controller and others
the simplest version of the regulator has the possibility of connecting the Yp feedback. external setpoint, external correction value and measurement for ratio control
regulation of the ratio (proportional regulation)
regulation of two-stage burners
calculation of the process value as a function of two measured values
Possibilities of expanding the regulator KS 94:
for an additional analogue output and analogue input
for an additional communication port RS 422/485 lub TTL or Profibus- DP
