Regulator PID KS Vario

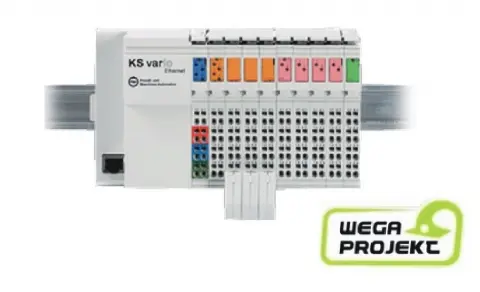

KS Vario – multi-channel regulator / multi-zone central unit of the modular VARIO control system. In connection with the I / O modules and the network communication module, it creates a multi-loop PID controller system whose number of zones can be varied from 4 to 30 control loops. Modular system of configurable digital or analog inputs / outputs that can operate as alarm thresholds, controller inputs / outputs, switching signals and distributed inputs / outputs controlled by the master system, configurable control loop types (PID with continuous output, two- and three-step control, step-by-step) , cascade, etc.) with many additional functions (input monitoring, self-tuning, start-up, ramps, etc.). In addition, Ethernet, Profibus-DP, CANopen, DeviceNet and Modbus communication modules make the VARIO system a universal control system for cooperation with higher-level PLC systems.
Configuration of control systems is done by the BlueControl software using a separate RS232 port of the KS Vario module.

Basic technical data of KSVario:

• housing: IP20, mounted on a 35mm DIN rail
• universal, configurable measurement inputs: B, C, D, L, J, K, N, S, R thermocouples, sensor
• additional analogue input modules, type 0/4 … 20mA, 0 … 10V, -20 … 20mA, -10 … 10V, Pt100, thermocouples, additional analogue output modules 0/4 … 20mA, 0 … 10V, -20 … 20mA, -10 … 10V
• additional 24 VDC binary inputs modules, additional 24 VDC binary output modules
• LED diodes indicating the operating status (communication, errors, etc.)
• 24VDC power supply
• Pt100, resistive input 0 … 450 oOhm, voltage input 0 … 70mV with status monitoring (open circuit, polarity)
• Ethernet, Profibus-DP, CANopen, DeviceNet, Modbus communication modules

Application:

• extruders / extruders – modernization or as OEM for new systems
• injection molds
• heating tunnels
• industrial furnaces
• driers
• painting shops
• textile industry
• packaging machines
• air conditioning systems
• thermal treatment
• sterilizers

Typical NOs order:

KSVC-101-00111-U00
KSVC-101-00131-U00
KSVC-101-00171-U00
KSVC-104-00441-U00
KSVC-104-00341-U00
KSVC-103-00441-U00
KSVC-103-00341-U00

MODULES:

Multichannel regulator modules:

• KKS VARIO T4/RTD Controllermodule
• KS VARIO T4/UTH Controllermodule
• KS VARIO T6/RTD Controllermodule
• KS VARIO T8/UTH Controllermodule

Communication modules for KS Vario:

• KS VARIO BK DP/V1 (PROFIBUS-DP/V1 bus coupler)
• KS VARIO BK ETH (ETHERNET bus coupler)
• KS VARIO BK CAN (CANopen bus coupler)
• KS VARIO BK DN (DeviceNet bus coupler)
• KS VARIO BK MOD (Modbus bus coupler)
• KS VARIO BK IP (ETHERNET IP bus coupler)

Digital input modules for KSvario:

• VARIO DI 2/24 (Digital inputs / 24V)
• VARIO DI 4/24 (Digital inputs / 24V)
• VARIO DI 8/24 (Digital inputs / 24V)
• VARIO DI 16/24 (Digital inputs / 24V)

Analog input modules for KSvario:

• VARIO AI 2/SF (Analog inputs standard signals)
• VARIO AI 8/SF (Analog inputs standard signals)
• VARIO UTH 2 (Analog inputs thermocouple)
• VARIO RTD 2 (Analog inputs temperature shunts)

Digital output modules:

• VARIO DO 2/24 (Digital outputs / 24V)
• VARIO DO 4/24 (Digital outputs / 24V)
• VARIO DO 8/24 (Digital outputs / 24V)
• VARIO DO 16/24 (Digital outputs / 24V)
• VARIO DO 1/230 (Relay output / 230V)
• VARIO DO 4/230 (Relay output / 230V)

Analog output modules:

• VARIO AO 1/SF (Analog output standard signals)
• VARIO AO 2/U/BP (Analog outputs voltage)

Input / output modules for KS vario:

• VARIO RTD 6-DO6 (Analog / Digital I/O-Modul)
• VARIO UTH 8-DO8 (Analog / Digital I/O-Modul)
• VARIO UTH 4-DO8 (Analog / Digital I/O-Modul)

Other modules:

• VARIO CO 2/U (Power supply for sensors)
• VARIO PWR IN/24 (Vario Power Terminal)
• VARIO RM TX (Bus branch module for remote bus)
• VARIO RM BK (Busreceiver module for remote bus I/Os)
• KS vario BT (Graphic operating terminals for modular controller system)
