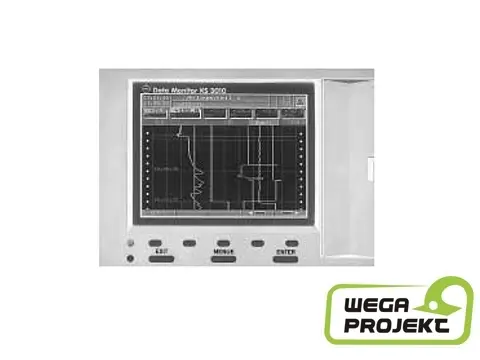

Recorder KS 3010

KS 3010 – a fully programmable data logger, controlled by a microprocessor. It is used to measure, visualize, store and process measurement data. Equipped with 6 or 12 universal inputs (or Profibus-DP). The recorder accepts signals from direct current and voltage sources, resistance thermometers, thermocouples, and potentiometric transducers.The KS 3010 service is available in various languages, including Polish.
The front panel has a protection rating of IP 54. Dimensions of the front panel 200 x 144 mm, dimensions of the mounting hole 138 x 138 mm.
The data is stored in RAM. They can be displayed on the color display. For long-term storage, data is saved to a floppy disk. With the help of the software, the data can be further processed and used for analysis on a PC.

Basic technical data of KS3010:

• 5.7 “color LCD display
• data analysis on a monitor or by means of engineering software on a PC
• paperless
• 6 or 12 fully programmable universal analog inputs isolated galvanically
• sampling time 125 ms
• up to 6 display groups, max. 6 analog and 3 digital measuring signals per group
• optional functions as point and line recorders
• selection of display formats in the group: graph in vertical or horizontal layout, bars,
• Profibus-DP and / or interface RS 232 / RS 422 / RS 485
• programmable write cycle for normal, event and time operation
• numeric presentation
