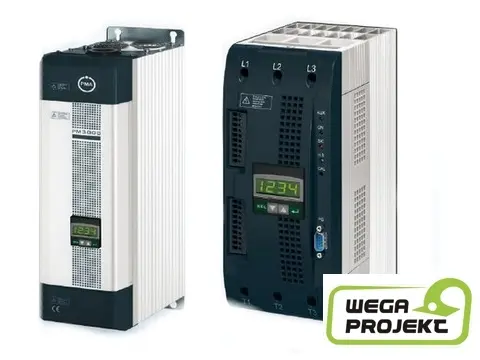

PM 3000 power controller / thyristor

PM 3000 is a universal digital unit with rich functionality and full configuration through the serial port. Designed to control resistive loads or transformers connected in a triangle or star without a neutral conductor.

Basic technical data of PM3000:

• version with two thyristors for 3-phase loads in a star / triangle
• all connection mode with the possibility of configuration via RS485Modbus or serial port
• integrated fuse and / or current transformer in the housing
• resistive loads or 3-phase transformers
• feedback in the form of power or voltage
• universal input with automatic zero / span calibration
• alarms of uneven load or interruption of the heater
• KeyPad front to operate the device
• RS 485 port ModBus
• compatible with EMC, Cul
• IP20
