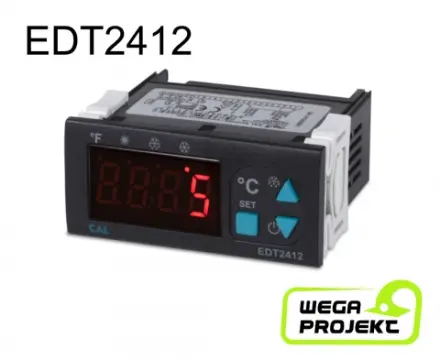

EDT2412 Defrost Thermostat

The EDT defrost thermostats have additional features to ensure optimum control and performance of a refrigeration system such as compressor protection, defrost control, real-time clock, communications and fast CAL-Key memory programming.

Benefits and features of EDT2412:

• Compressor, defrost and fan control
• One NTC input for cooling and defrost
• Manual, timed and evaporator temperature defrost modes supported
• 35 x 77mm format (29 x 71mm cutout)
• CAL-key for fast configuration
• Real-time clock option
• RS485 communications option

Specification:

• Product Category: Thermostats
• Control type: On-Off control
• Control: Single set-point control
• Supply voltage: 230V AC +%10 -%20, 50/60Hz or 12/24 V AC/DC ± %10
• Scale [Sensor type = NTC]: -60.0 … +150.0°C (-76.0 … +302.0°F)
• Display: 4 digits, 12.5mm, 7 segment LED
• Input: One NTC probe input / Relay: NO+NC 250V AC,8A (for resistive load), 1/2hp, 0.37kW 240V AC (for inductive load)
• Compressor relay output: Relay: NO 277V AC,20A (for resistive load), 2hp, 1.49kW 250V AC (for inductive load) / Relay:NO 250V AC,8A (for resistive load)
• Defrosting and lighting relay output: 1/2hp, 0.37kW 240V AC (for inductive load)
• Dimensions: W77xH35xD61mm
• Safety requirements: EN 61010-1: 2010 (Pollution degree2 , overvoltage category II)
• EMC: EN 61326-1: 2006
• Protection class: According to En60529; Front panel: IP65, Rear panel : IP20
• Ambient/storage temperature: 0 … +50°C/-25 … 70°C (without icing)
