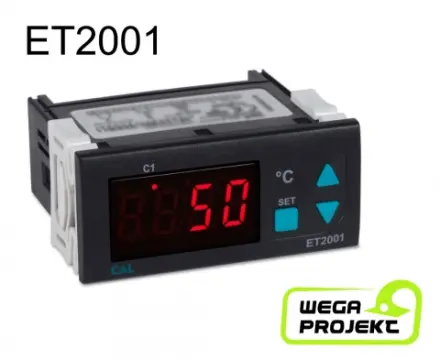

ET2001 Digital Thermostat

The ET thermostats are cost-effective thermostat devices for both industrial heating or cooling applications, two output version also includes alarm function

Benefits and features of ET2001:

• Heating or cooling applications
• J thermocouple
• Single set-point, and on/off control
• 35 x77mm format (29 x 71mm cutout)
• Zero point shift

Specification:

• Product Category: Thermostats
• Control type: On-Off control
• Control: Single set-point control
• Supply voltage: 24V AC, 110V AC or 240V AC +%10 -%20 50/60Hz, 9-30V DC / 7-24V AC 50/60Hz
• Sensor range: -30…400°C / -22…752°F
• Display: 4 digits, 12.5mm, 7 segment LED
• Input: J Thermocouple EN 60751
• C1 output: For 5A models: 250V AC, 5A (for resistive load), NO control output. / For 8A models: 250V AC, 8A (for resistive load), NO and NC control output. / For 16A models: 250V AC, 16A (for resistive load), NO control output.
• Dimensions: W77xH35xD71mm
• Safety requirements: EN 61010-1: 2010 (Pollution degree2 , overvoltage category II)
• EMC: EN 61326-1: 2006
• Protection class: According to EN 60529; Front panel: IP65 Rear panel: IP20
• Ambient/storage temperature: 0 … +50°C/-25… +70°C (with no icing)
