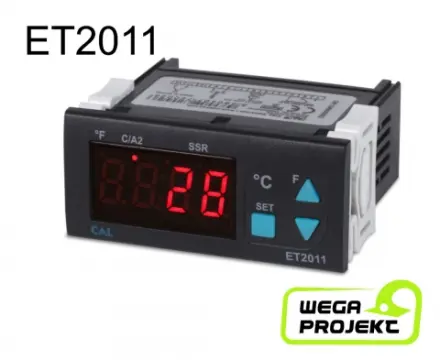

ET2011 Digital Thermostat

Compact 77mm x 35mm digital thermostat for general industrial applications. Thermocouple or PT100 sensor input and two outputs, relay and SSR.

Benefits and features of ET2011:

• Heating or cooling applications
• Thermocouple, PT100 or NTC inputs
• Single or two outputs for control and alarms
• 35 x77mm format (29 x 71mm cutout)

Specification:

• Product Category: Thermostats
• Control type: On-Off / P, PI, PD, PID (selectable)
• Control: Single set-point, and alarm control
• Supply voltage: 230V AC +%10 -%20, 50/60Hz or 24V AC %10, 50/60Hz
• Sensor range:PT100 -99.9 to 300.0°C (-99.9 to 543.0°F) / PT100 -200 to 600°C (-328 to 1112°F) / J T/C 0 to 600°C (32 to 1112°F) / K T/C 0 to 1300°C (32 to 2372°F) / T T/C 0 to 400°C (32 to 752°F) / S & R T/C 0 to 1700°C (32 to 3092°F)
• Display: 4 digits, 12.5mm, 7 segment LED
  Input: PT100, J, K, T, S, R Thermocouples / Relay : 250V AC, 8A (for resistive load), Selectable as NO+NC Control or Alarm output.
  C/A2 output: Relay : 250V AC, 16A (for resistive load), Selectable as NO Control or Alarm output.
• SSR output: Max 20mA 12Volt (as control output)
• Dimensions: W77xH35xD71mm
• Safety requirements: EN 61010-1: 2010 (Pollution degree2 , overvoltage category II)
• EMC: EN 61326-1: 2006
• Protection class: According to EN 60529; Front panel: IP65 Rear panel: IP20
• Ambient/storage temperature: 0 … +50°C/-25… +70°C (with no icing)
