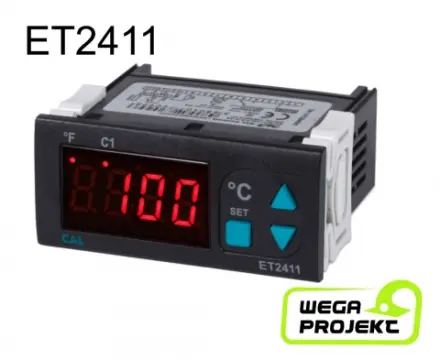

ET2411 Digital Thermostat

The ET2411 and ET2412 are specifically designed for use with NTC sensors. They are easy to configure, have a large clear display for good visibility and a compact design that is fast to install

Benefits and features of ET2411:

• Range -60 to 150°C
• Ideal for industrial or commercial applications with NTC temperature sensors
• Single output for control and alarms
• 35 x77mm format (29 x 71mm cutout)
• Zero shift
• Adjustable upper and lower setpoint limits

Specification:

• Product Category: Thermostats
  Control type: On-Off control
• Control: Single set-point control
• Supply voltage: 230V AC +%10 -%20, 50/60Hz or 12/24V AC/DC ±%10, 7-24V AV / 9-30V DC
• Sensor range: -60.0…150.0°C -76.0…302.0°F
• Display: 4 digits, 12.5mm, 7 segment LED
• Input: NTC sensor resistance EN 60751
• C1 output: For 5A models : 250V AC, 5A (for resistive load), NO Control output. / For 8A models : AC, 8A (for resistive load), NO+NC Control output. / For 16A models : 250V AC, 16A (for resistive load), NO Control output.
• Dimensions: W77xH35xD61mm
• Safety requirements: EN 61010-1: 2010 (Pollution degree2 , overvoltage category II)
• EMC: EN 61326-1: 2006
• Protection class: According to EN 60529; Front panel: IP65 Rear panel: IP20 / Ambient/storage temperature: 0 … +50°C/-25… +70°C (with no icing)
