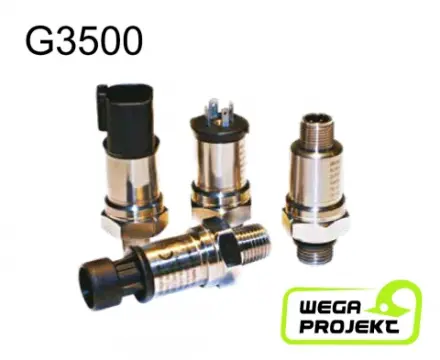

G3500

For OEMs that need consistent high levels of performance, reliability and stability the G3500 series units offer a compact size with all 316L stainless steel wetted parts at an unbeatable price performance ratio. A wide choice of output signal types in addition to various electrical connection and pressure port types means the unit is suitable for most applications without modification. The compact construction of the G3500 series makes it ideal for installation where space is at a premium.

A MEMS pressure sensor has a significantly more complex design than a traditional thin-film pressure sensor. The pressure sensor element is made of a silicon chip, which deflects under pressure and consists of a diaphragm structure with piezo-resistive resistors. A bare MEMS chip is hermetically sealed to protect against environmental influences. For this reason, it is installed in a stainless-steel case that is sealed using a thin, flat, stainless steel diaphragm. The cavity between the MEMS chip and the external diaphragm is filled with synthetic oil.

Benefits and features of MAX VU:

• Pressure Transmitter for gauge, absolute and vacuum pressure measurement
• Small and compact package size
• Lifetime > 100 M cycles
• Process temperatures from – 40 … +125°C
• Measuring range from +/-350 mbar to -1 … 40 bar
• Wide range of pressure ports and electrical connectors
• Housing and Diaphragm made of premium stainless steel
• Customized OEM

Specification:

• Measuring Ranges -1/0 … 0.35/40 bar
• Accuracy 0.2% FS/year (non-cumulative)
• Process Temperature -40°C … +125°C
• Ambient Temperature -40…+70 °C (–40…+158 °F)
• Lifetime Designed >100M cycles
• Wetted Parts Stainless Steel 316L
• Electrical Connection Plug connection or fixed cable
• Protection IP67 (IP65 connection plug type A and C)
• Approvals CE, conforms to European Pressure Directive, Fully RoHS compliant,UL recognized file # EX16137
• Weight 35 grams
• Voltage Output 0 … 5/10; 1 … 5/6V; 0.5 … 4.5V
• Output Signal 3-wire, linear characteristic curve
• Current Output 4 … 20 mA
• Output Signal 2-wire, linear characteristic curve
