PRODUCT DETAILS
Industrial pressure transmitters for safe measurement and monitoring of many applications including gases, vapours and liquids. Designed to withstand harsh environments in the process industry. P30-2 is suitable for applications up to 40 bar gauge pressure. P30-2 transducers are made from AISI 316L stainless steel for improved robustnessand have a permissible overload is four times the nominal span. Typical applications: Hydraulic systems, compressed air, plant construction, pumps, filling and weighing machines, level measuring, packaging machines.

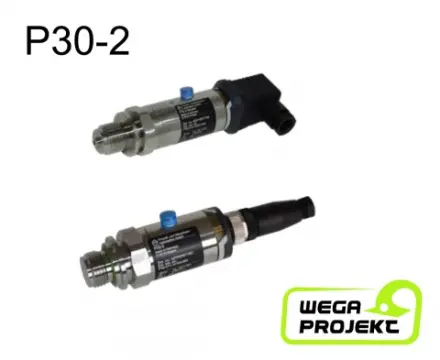

The P30-2 pressure transmitter is available with a process connection with an internal diaphragm or in a flush-mount design. The process pressure deflects the metal process isolating diaphragm of the sensor and the fill fluid transfers the pressure to a Wheatstone bridge (semiconductor technology). As pressure varies, the related bridge output voltage changes and is measured by the connected device. The transducer can be supplied with a 0…10V (3-wire) or 4…20mA (2-wire) output.
TECHNICAL SPECIFICATIONS
Benefits and features of P30-2:
- Premium Pressure Transmitter for gauge and pressure measurement with 3 years warranty
- High repeatability and long-term stability
- High overload resistance
- Measuring ranges up to 40 bar (600psi)
- Customer specific measuring ranges available
- Flush mounted or manometer connection
- Housing and connection made from 316L
Specification:
- Measuring Ranges 0… 40 bar
- Accuracy 0.5% FS (including linearity, repeatability, zero point and span, hysteresis)
- Process Temperature -25 … +85°C (-13 … 185°F)
- Ambient Temperature -40 … +70°C (-40 … +158°F)
- Lifetime >100M cycles
- Wetted Parts Membrane: 1.4435 /X2CrNiMo 18-14-3), AISI 316L
- Fitting: 1.44044 (X2CrNiMo 17-12-2), AISI 316L
- Non-Wetted Parts Housing 316L; pressure venting element PBT/PC; lower part connector PPSU; design element PMT/PC; Valve connector PA (sealing NBR; screw V2A)
- Electrical Connection Plug connection
- Protection IP65, NEMA Type 4X
- Approvals CE, conforms to European Pressure Directive, RoHS compliant, CSA C/US
- Weight Approx. 250g
- Voltage Output 0 … 10V
- Output Signal 3-wire, linear characteristic curve
- Current Output 4 … 20 mA
- Output Signal 2-wire, linear characteristic curve
