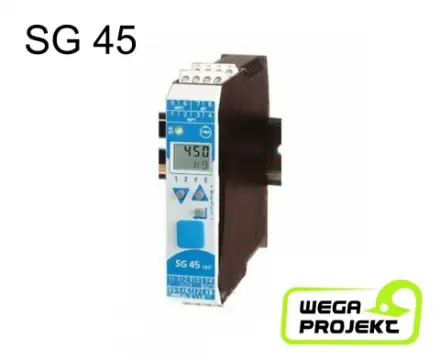

SG 45 Transmitter

SG 45 transmitters are suitable for precise, cost-efficient contol tasks in all industrial applications. Every SG 45 is equipped with a strain gauge signal input, an universal output and two relays. Optionally the tranmitter can be fitted with various interfaces.
Galvanic isolation is provided between inputs and outputs as well as from the supply voltage and the communication interfaces.

Benefits and features of SG 45:

• Compact design, just 22,5 mm (O,87″) wide
• Clips onto top-hat DIN rail
• Plug-in screw terminals or spring-clamp connectors – simple connection
• Dual-line LC display with additional display elements
• Process values always in view
• Convenient 3-key operation
• Direct communication between mounted controllers, fieldbus connections via bus coupler
• Measurement input with high signal resolution (23 bits)
• Universal high-resolution output (14 Bit) as combined voltage/current output
• Two relay outputs
• Quick response; only 50 ms cycle time, i.e. also suitable for fast signals
• Customer-specific linearization
• Dead load compensation and tare adjustment
• Min/max indicator (‘slave pointer’)
• Preset for output value
• Zero setting with adjustable limit value

Applications for SG 45:

• Chemical industry
• Foodstuffs &bevarage industries
• Concrete
• Asphalt
• Building industry
• Lime and clay
• Industrial weighers such as:
  • Container scales
  • Floor scales / platform scales
  • Road vehicle weighbridges
  • Crane weighers
• Extrusion applications
  • Melt pressure monitoring
  • Melt pressure control
  • Melt filter control
  • Pressure and speed control
