Single Point Load Cells

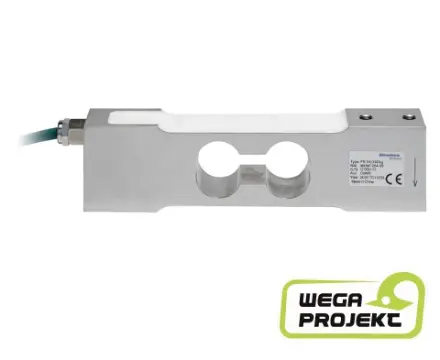

PR54 Load Cell
The stainless steel Single Point load cells PR 53 and PR 54 are available for loads ranging from 7.5 kg to 200 kg and a platform size of up to 500 mm x 400 mm.
TECHNICAL SPECIFICATIONS
- Range from 7.5 kg/10 kg to 200 kg
- IP66/IP67
- For platforms measuring up to 500 x 400 mm
- Stainless steel construction
Typical NOs for PR 54:
PR 54/7.5 kg C3MR 9409 254 07007
PR 54/10 kg C3MR 9409 254 07010
PR 54/15 kg C3MR 9409 254 07015
PR 54/20 kg C3MR 9409 254 07020
PR 54/30 kg C3MR 9409 254 07030
PR 54/50 kg C3MR 9409 254 07050
PR 54/100 kg C3MR 9409 254 07110
PR 54/200 kg C3MR 9409 254 07120
Typical NOs for NTEP and EX PR 54:
PR 54/xx kg III 5000 S 9409 254 0Cxxx
PR 54/xx kg C3MRE 9409 654 07xxx
